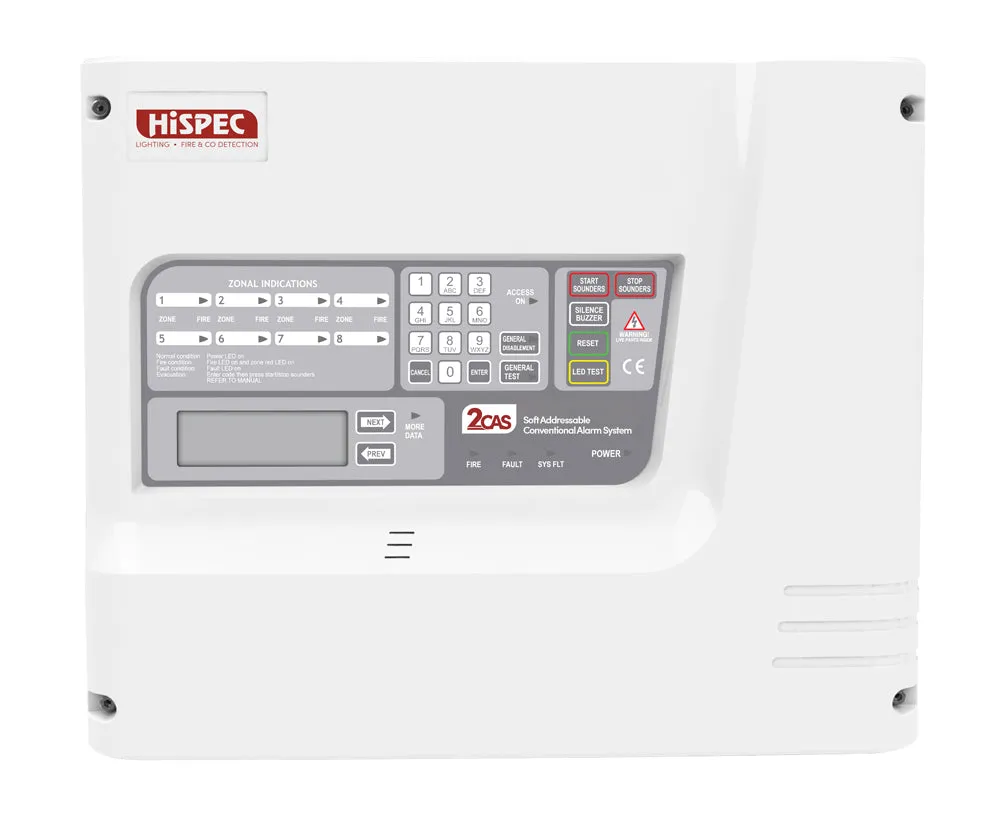

HiSPEC HS2CAS/4ZP Mains 2CAS Four Zone Panel
Features
- 2 Zone, 4 Zone & 8 Zone available
- Each device is uniquely addressable
- Can be wired as radial loop
- 15 Devices per zone
- Separate sounder circuit not required
- 2048 Event history log
- Surface mountable and recessed mountable
Specifications
- Supply Voltage: 230v ac 50/60Hz
- System Voltage: 29v dc nominal (19-30v)
- Loop Sounder Circuit Supply: 2x Conventional, 28v nominal, 150mA (20-30v dc)
- Fault Relay: 1xSELV@1A (normally energised)
- Fire Relay: 1xSELV@1A
- Detection Circuits: 8 Radial Circuits (Max), 4 Loop Circuits (Max)
- Loop Sounder Circuit: 80 Sounder (Max)
- Repeater Panel Connection: RS485
- Approved to: BS5839-1 & 6
- Designed to: EN54-2 & 4
- Product Code: HS2CAS/4ZP
